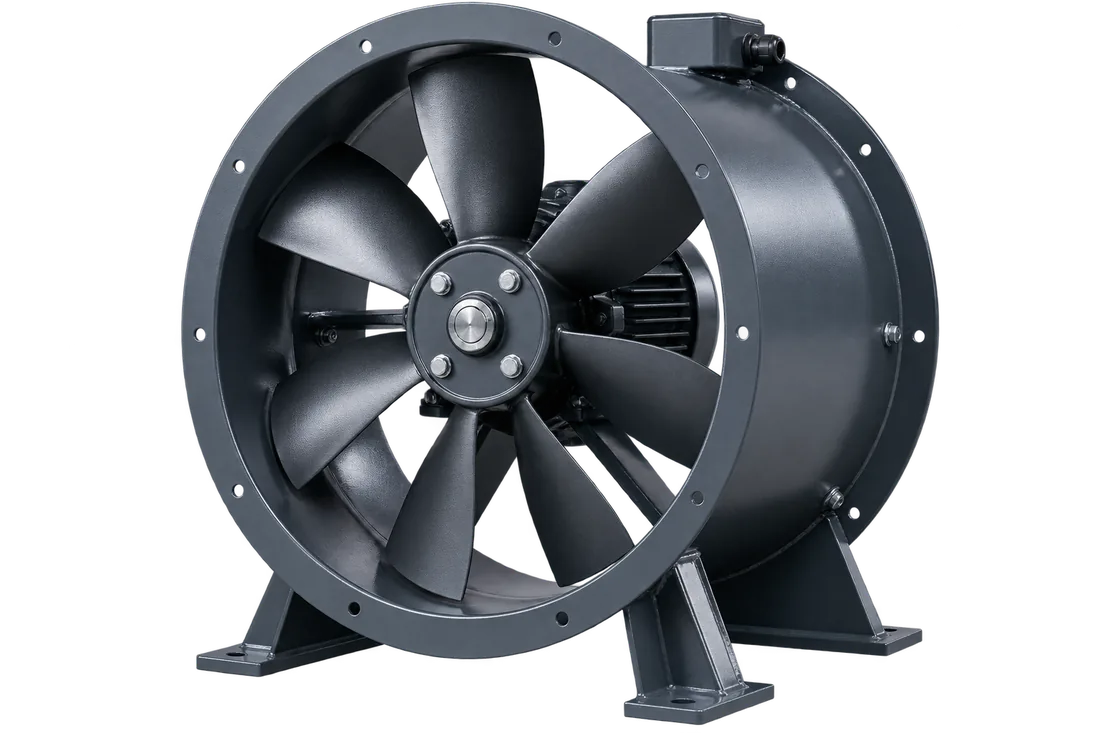

Axial Flow Fan
Supplied by Gohil Industrial Co. Blowers and Fans
Axial fan moves large volumes of air at low pressure, straight through the housing rather than turning it. The right choice for general ventilation, and the wrong one for pushing through long ducting.
Price on request
Specification
- Airflow
- 1,000 to 60,000 cubic metres per hour
- Static pressure
- up to 50 mmWC
- Diameter
- 300 to 1200 mm
- Blades
- Cast aluminium, adjustable pitch
- Motor
- 0.25 to 15 HP
- Mounting
- Flanged duct or wall
These are typical figures for this type of unit, shown so you can see the shape of the range. Confirm the exact specification with us before ordering.
Typical applications
- Shed and godown ventilation
- Cooling towers
- Exhaust systems
