Helical Gear Box
Supplied by Gohil Industrial Co. Helical Gearbox

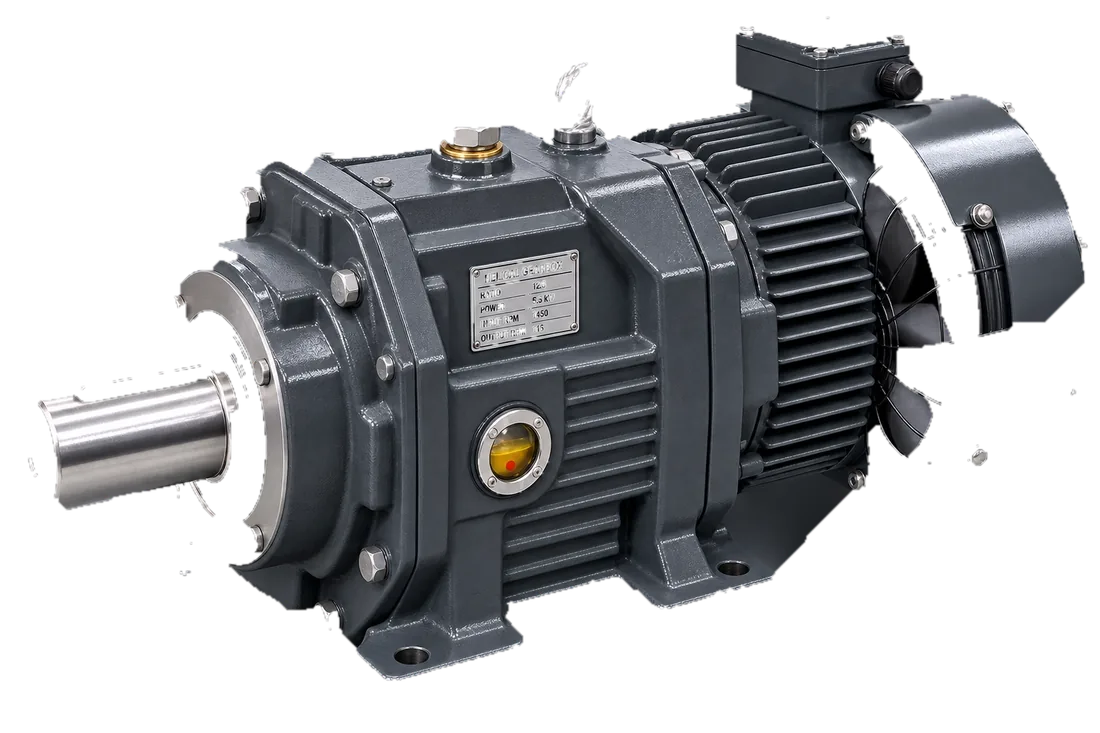

Fan cooled helical unit for continuous running where the duty cycle does not give the housing time to shed heat on its own. The cowl and fan sit on the input side and add nothing to the mounting envelope.
Price on request
Specification
- Ratio range
- i = 1:6 to 1:200
- Power
- 0.37 to 30 kW
- Output torque
- up to 9,000 Nm
- Cooling
- Shaft mounted fan
- Mounting
- Foot
- Duty
- S1 continuous
These are typical figures for this type of unit, shown so you can see the shape of the range. Confirm the exact specification with us before ordering.
Typical applications
- Continuous conveyor lines
- Extruders
- Kiln drives
