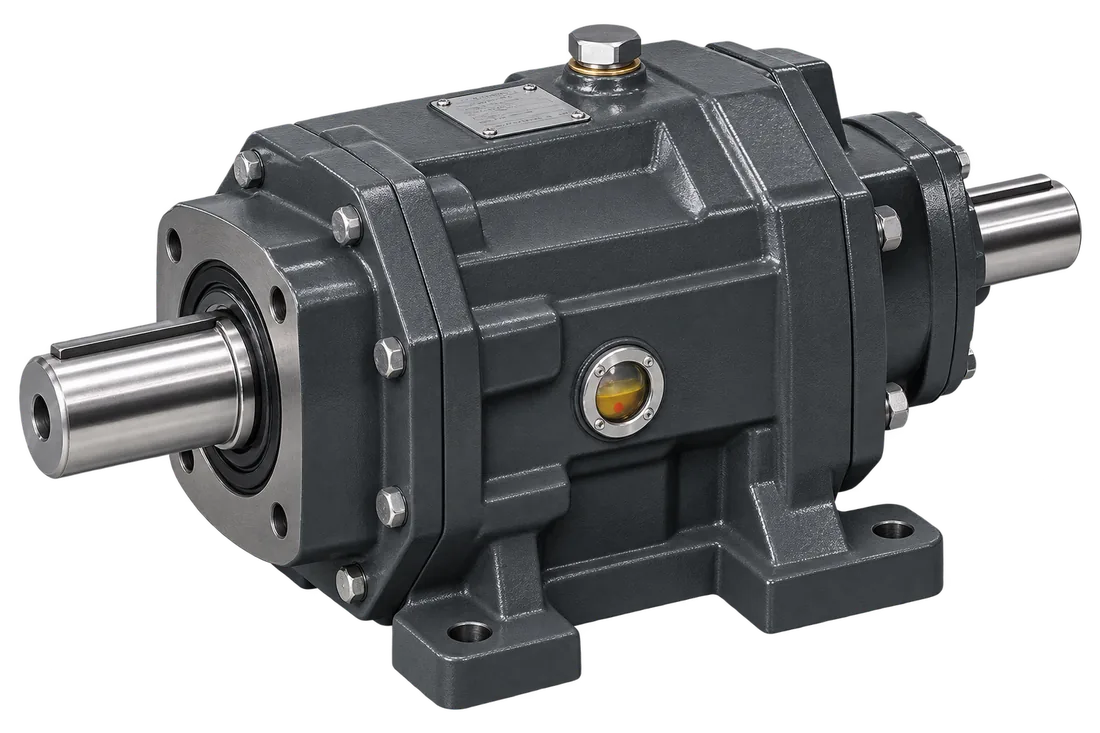

Helical Gearbox

Inline helical reduction with the output shaft on the same axis as the motor. Helical teeth mesh gradually rather than all at once, so it runs quieter and cooler than a spur or worm drive and suits duty that runs all day.

Price on request

Specification

Ratio range

i = 1:5 to 1:180

Power

0.18 to 45 kW

Output torque

up to 12,000 Nm

Stages

2 or 3

Mounting

Foot or flange

Input

IEC motor adaptor or solid shaft

Efficiency

about 96 percent per stage

These are typical figures for this type of unit, shown so you can see the shape of the range. Confirm the exact specification with us before ordering.

Typical applications

• Belt conveyors
• Mixers and agitators
• Bucket elevators
• Screw feeders
