Casting Worm Gear Box
Supplied by Gohil Industrial Co. Worm Gear

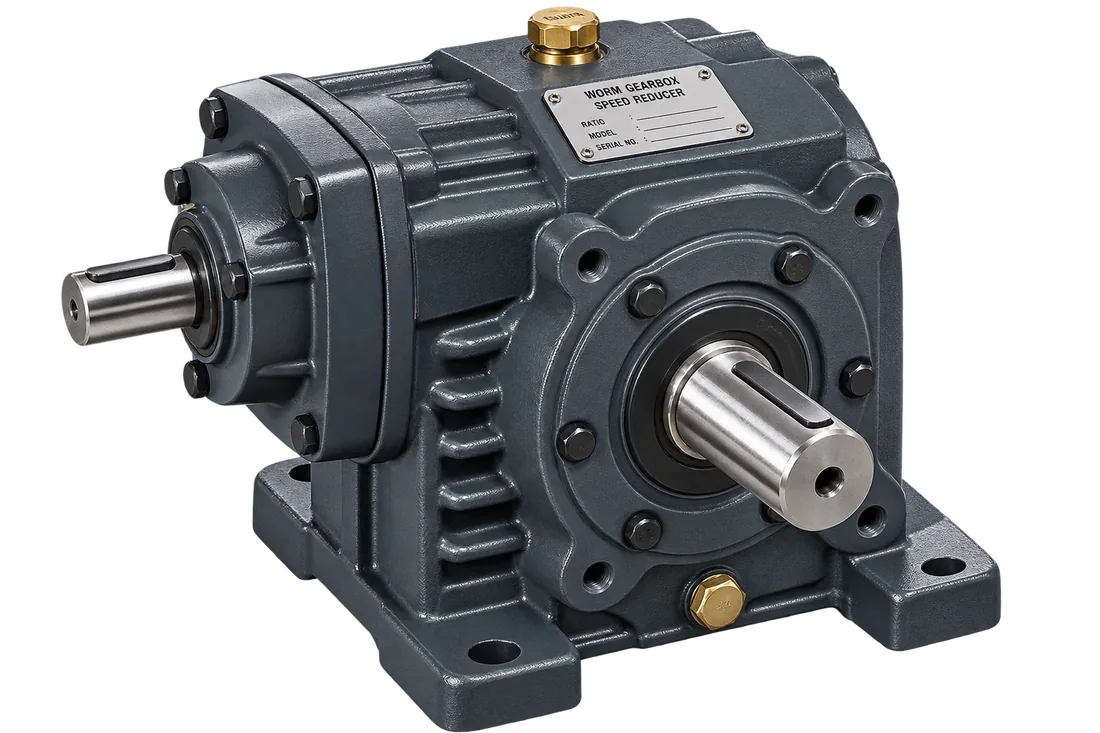

Cast iron worm reducer for right angle drive where the load is heavy or shocky. Cast iron takes more punishment than aluminium and holds shaft alignment better under load. At higher ratios the worm set is effectively self locking, which is useful on a lift or an incline, though it should never be relied on as a brake.
Price on request
Specification
- Ratio range
- i = 1:5 to 1:100
- Power
- 0.18 to 15 kW
- Centre distance
- 50 to 150 mm
- Output torque
- up to 2,800 Nm
- Housing
- Cast iron
- Worm wheel
- Phosphor bronze
- Input
- IEC motor flange or solid shaft
These are typical figures for this type of unit, shown so you can see the shape of the range. Confirm the exact specification with us before ordering.
Typical applications
- Inclined conveyors
- Goods lifts
- Oil mill drives
- Mixers
